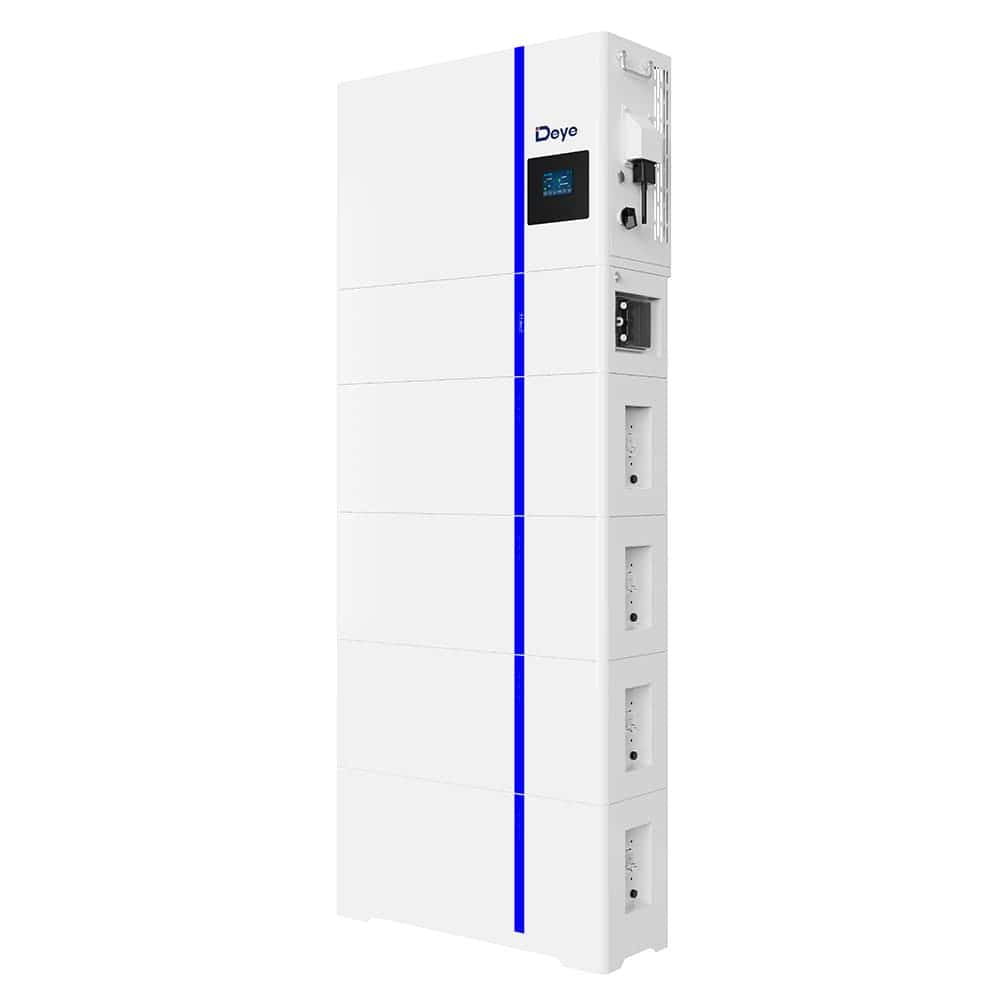

AI-W5.1-B - Only DEYE Low voltage hybird Inverters

AI-W5.1-B - Only DEYE Low voltage hybird Inverters

Battery Chemistry LiFePO4

Battery Module Energy (kWh) 5.12

Battery Module Voltage (V) 51.2

Battery Module Capacity (Ah) 100

Scalability 1 2 3 4 5 6

Nominal Voltage (V) 51.2

Operating Voltage(V) 43.2~57.6

Nominal Energy (kWh) 5.12 10.24 15.36
20.48 25.6 30.72

Usable Energy (kWh)[1] 4.6 9.2 13.8 18.4
23 27.6

System Dimension (W/D/H, mm)
720*255*569 720*255*850
720*255*1131 720*255*1412
720*255*1693 720*255*1974

System Weight (kg) 74.5 127.5 180.5 233.5
286.5 339.5

IP Rating of Enclosure IP65 (after stacking)

Installation Wall-Mounted, Floor-Mounted

Communication Port CAN2.0, RS485

Cycle Life ≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL)

Warranty Period [3] 10 years

Certification UN38.3, IEC62619, CE, UK, VDE2510-50, CEI 0-21,CE-LVD, CEC
