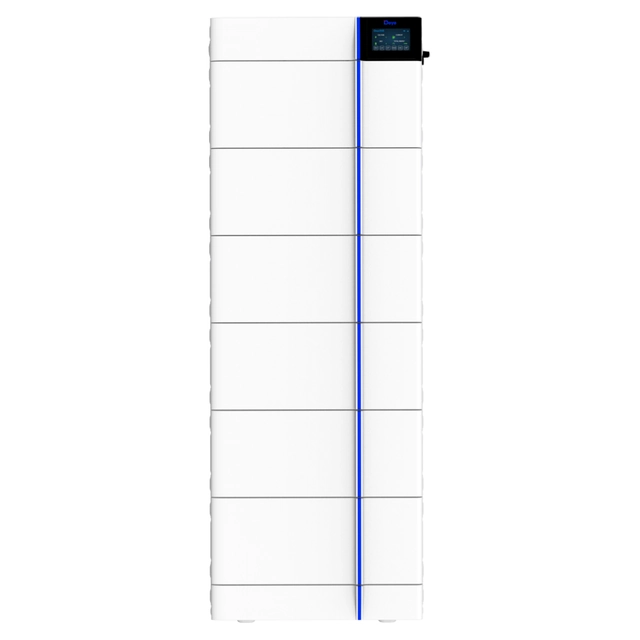

GB-LM4.0 - Only DEYE 6- 8-10-12-15- 20kw High voltage hybird inverter

GB-LM4.0  - Only DEYE 6- 8-10-12-15- 20kw High voltage hybird inverter

High Voltage

Cell Chemistry LiFePO4

Module Energy (kWh) 4.09

Module Nominal Voltage (V) 102.4

Module Capacity (Ah) 40

Battery Module Qty In Series (Optional) 2 3 4 5 6

System Nominal Voltage (V) 204.8 307.2409.6 512 614.4

IP Rating of Enclosure IP65

Installation Location Floor Mount

Cycle Life 25±2°C, 0.5C/0.5C, EOL70%≥6000

Warranty[3] 10 years

Certification CE / IEC62619 / VDE2510-50 /UL1973 / UL9540A / UN38.3
